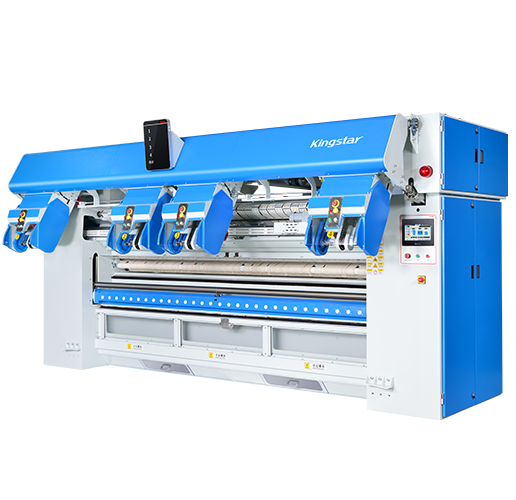

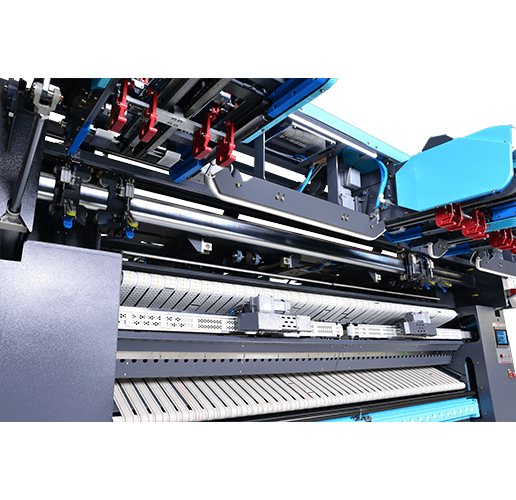

Single Lane Spreading Feeder

Product overview

Combine with CLM high speed ironer and folder to be a complete super speed ironer line, which can deal with 1200 pieces bed sheets

Application industry

Hotel Laundry
Hospital Laundry
Product Video

Technical Characteristics

  • Statistical function

    Each station has the statistical function of investment, and accurately measures the number of sheets, which is convenient for operators to manage

  • Software Communication

    CLM high speed folder and CLM high speed feeder, high speed ironer can achieve program linkage function

  • Air duct structure

    The special air duct structure design, the sheets which be sucked into the box can shaking by air blowing to improve the flatness

  • the maximum feeding size

    3300X3500mm-Huge size sheet can smoothly suction into the suction box and the maximum sheet size can reach 3300x3500mm

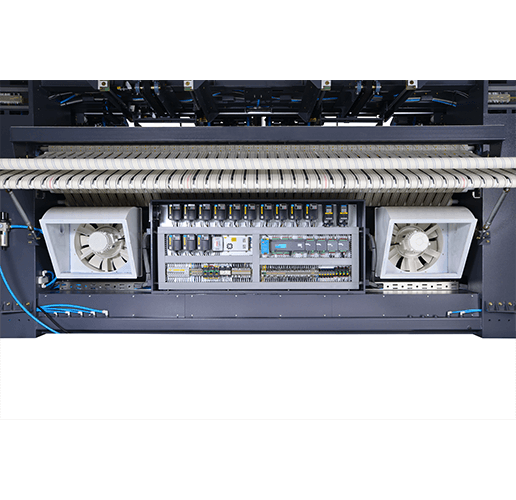

  • Suction Fan Power

    The minimum power of the suction fan is 750W, and it can also be equipped with 1.5kW and 2.2KW fan

  • Fast and Efficient

    4 stations feeding sheets at the same time,each station has two sets of feeding clamps, the working efficiency is very high

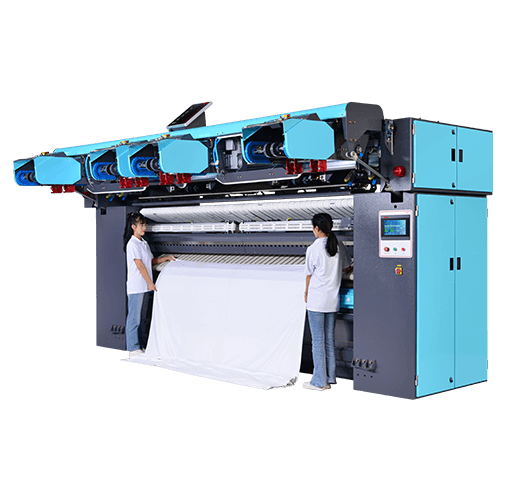

  • Manual Feeding Function

    Designed with manual feeding function, which can realize the feeding of bed sheet, duvet cover,table cloth,pillowcase, small linen,etc

  • Heavy Sheets anti-drop function

    Heavy sheets anti-drop function to smoothly feeding large and heavy sheets

  • Brush Flattening Function

    CLM feeder have double methods to flatten the sheets, one is use mechanical knife and another is use suction belt brush

  • Guide Rail Design

    High SpeedThe guide rail mold is squeezed and molded, the accuracy is high, the surface is treated with special wear resistance, the connecting clip runs smoothly on the track, and the speed is fast

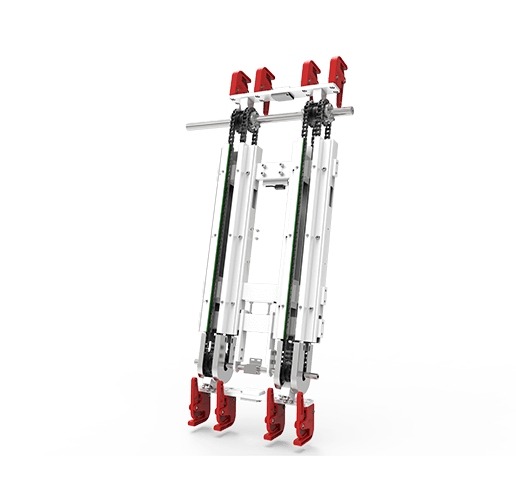

  • Spreading Clamps

    The wheels of spreading clamps use special imported material which ensure long service life

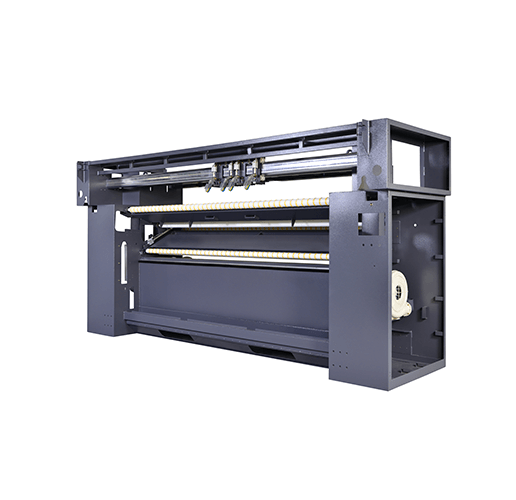

  • Frame Structure

    The frame structure of the CLM automatic feeder is welded as a whole, and each long axis is precisely processed

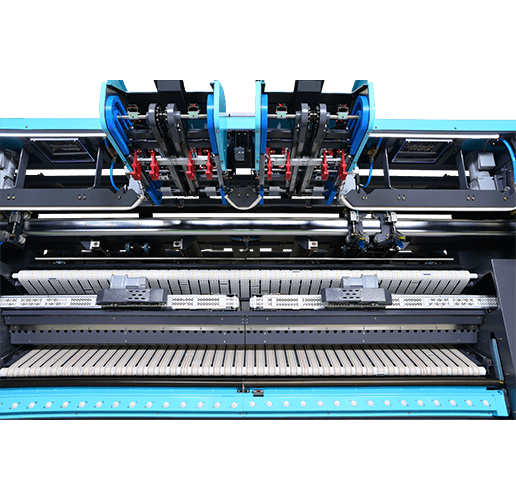

  • Shuttle Plate

    The shuttle plate is controlled by a servo motor, with high accuracy and fast speed.Not ong feeding bed sheet at high speed, but also can feeding duvet cover at low speed

  • Feeding Speed

    Maximum Feeding Speed can reach 60m/min, each hour can feeding 1200 pcs bed sheets

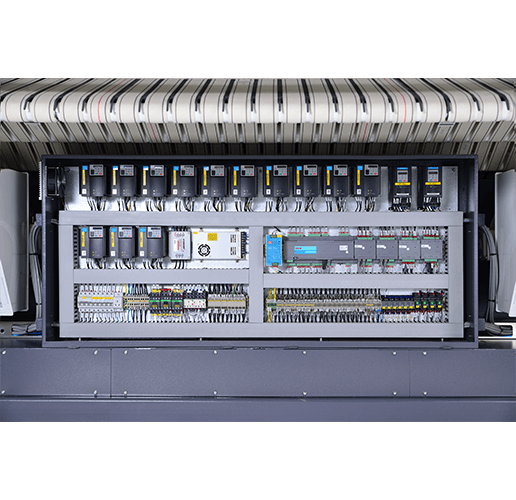

  • Quality Ensurance.Quality Ensurance

    All electrical components,pneumatic components,bearing,motor,etc all use Japanese, European famous brands

High Speed

CLM洗衣籠密封性能性好，有效保證不漏水、運行噪音低

Flat Ironing

裝料口設置在地面70CM高的距離，實現輕松裝料，人性化設計。

Running Smoothly

所有電器、氣動元件均采用德國、日本品牌。

Energy Efficiency

洗衣籠內筒采用4mm厚度不銹鋼，比歐洲其他品牌材料更厚更堅固。

Technical Parameter

Product manual
